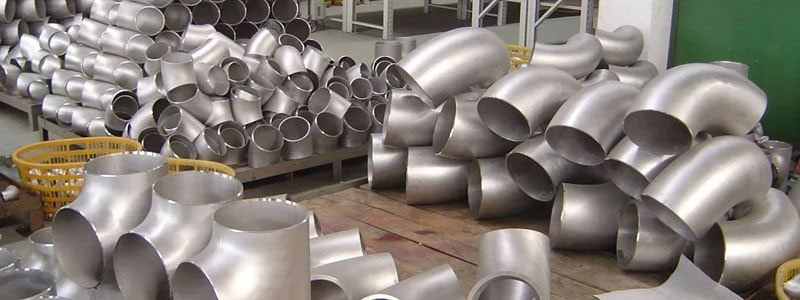

Golden Island Trading is a leading Pipe Fittings Manufacturer in Saudi Arabia. Depending on the needs of the client, we supply and export a wide variety of elbows, tees, reducers, unions, couplings, crosses, caps, swage nipples, plugs, bushings, adapters, outlets in various diameters, grades, and thicknesses. We put a lot of effort into making sure that our pipe fittings are of the highest calibre. We have gotten a number of orders from all over the world as a result of our unwavering dedication to quality, pricing, and service.
Golden Island Trading Est is a well-known Pipe Fittings Manufacturer, Supplier, and Stockist in India. We procedure and Manufacture Pipe Fittings which consist of top-quality materials that provide continued corrosion protection for the extensive majority of chemical applications where our Pipe Fittings products are considered acceptable. We have originated several technologies that have resulted in quality and accuracy. Our company adheres to high-quality standards at all stages of the development process, from conceptual design through product release.
As a leading Pipe Fittings Supplier we make use of a strong external layer to supply long-term resistance to the results of rays and other weathering factors. We are also regarded as one of the major Valve Manufacturer.
Golden Island Trading Est is the Leading Pipe Fittings Manufacturer, Supplier & Stockist in Saudi Arabia
| Specifications | |
|---|---|
| Specification | Pipe Fittings |
| Type of Pipe Fitting | Elbow, Tee, Cross, Reducer, End Caps, Bends, Stub Ends - Lap Joint, Nipples, Outlet Fittings |
| Type | Seamless / ERW / Welded / Fabricated. |
| Size range | ½ NB to 48NB |
| Surface | 0.067, 0.083, 0.015 |
| Width | 1000mm, 1219mm, 1500mm, 1800mm etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm etc |
| Grade | |
| Stainless Steel | 201 , 304, 304L, 304H, 305, 310, 310S, 310H, 316, 316L, 316Ti,317,317L, 321, 347, 347H, 309S, 410, 446. |
| Titanium | Titanium 6-4, Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, 5-2.5, 6-2-4-2, 6-4 ELI, 6-6-2. |
| Hastelloy | C22, C276, X, B-2. |
| Monel | 400, K500. |
| Inconel | 601, 625, 660A, 718, X-750, 825, 925, 608. |
| Nichrome Alloy | CrNi 20/80. |
| Pipe Fittings | Chemical composition | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P max | S max | Si | Cr | Mo | Ni | Cu | Others |
| WPB (1,2,3,4,5) |
0.30 max |
0.29-1.06 | 0.050 | 0.058 | 0.10 min |
0.40 max |
0.15 max |
0.40 max |
0.40 max |
V 0.08 max |
| WPC (2,3,4,5) |
0.35 max |
0.29-1.06 | 0.050 | 0.058 | 0.10 min |
0.40 max |
0.15 max |
0.40 max |
0.40 max |
V 0.08 max |
| WP1 | 0.28 max |
0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | 0.44-0.65 | ||||
| WP12 CL1 | 0.05- 0.20 |
0.30-0.80 | 0.045 | 0.045 | 0.60 max |
0.80-1.25 | 0.44-0.65 | |||
| WP12 CL2 | 0.05- 0.20 |
0.30-0.80 | 0.045 | 0.045 | 0.60 max |
0.80-1.25 | 0.44-0.65 | |||
| WP11 CL1 | 0.05- 0.15 |
0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP11 CL2 | 0.05- 0.20 |
0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP11 CL3 | 0.05- 0.20 |
0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP22 CL1 | 0.05- 0.15 |
0.30-0.60 | 0.040 | 0.040 | 0.50 max |
1.90-2.60 | 0.87-1.13 | |||
| WP22 CL3 | 0.05- 0.15 |
0.30-0.60 | 0.040 | 0.040 | 0.50 max |
1.90-2.60 | 0.87-1.13 | |||
| WP5 CL1 | 0.15 max |
0.30-0.60 | 0.040 | 0.030 | 0.50 max |
4.0-6.0 | 0.44-0.65 | |||
| WP5 CL3 | 0.15 max |
0.30-0.60 | 0.040 | 0.030 | 0.50 max |
4.0-6.0 | 0.44-0.65 | |||
| WP9 CL1 | 0.15 max |
0.30-0.60 | 0.030 | 0.030 | 1.00 max |
8.0-10.0 | 0.90-1.10 | |||
| WP9 CL3 | 0.15 max |
0.30-0.60 | 0.030 | 0.030 | 1.00 max |
8.0-10.0 | 0.90-1.10 | |||
| WPR | 0.20 max |
0.40-1.06 | 0.045 | 0.050 | 1.60- 2.24 |
0.75-1.25 | ||||
| WP91 | 0.08- 0.12 |
0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.0-9.5 | 0.85-1.05 | 0.40 max |
V 0.18- 0.25 Nb 0.06-0.10 N 0.03-0.07 Al 0.02 max(6) Ti 0.01 max(6) Zr 0.01 max(6) |
|
| WP911 | 0.09- 0.13 |
0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 8.0-9.5 | 0.90-1.10 | 0.40 max |
V 0.18-0.25 Nb 0.060-0.10 N 0.04-0.09 Al 0.02 max(6) B 0.0003-0.006 W 0.90-1.10 Ti 0.01 max(6) Zr 0.01 max(6) |
|
| Tensile and Yield Strength ASTM A234 for Carbon and Alloy Steel Fittings | WPB | WPC, WP11-CL2 | WP11-CL1, WP22-CL1, WP5-CL1, WP9-CL1 | WP11-CL3, WP22-CL3, WP5-CL3, WP9-CL3 | WP91 |
|---|---|---|---|---|---|
| Tensile strength, minimum unless a range is given ksi (MPa) | 60 (415) | 70 (485) | 60 (415) | 75 (520) | 90 (620) |
| Yield strength, min ksi (MPa) (0.2% offset or 0.5% extension under-load) | 35 (240) | 40 (275) | 30 (205) | 45 (310) | 60 (415) |
Email: info@gtesaudi.com
Number: +966 53 576 7850
Every year we exports more than 12 tonnes of pipe fittings, accounting for 35% of those pipe fittings. We usually send to a large number of nations for our most recent clientele. We are able to convey and complete the demands and desires of our clients because of our consistent supply of pipe fittings.
